Sketch Scheme & Feasibility Study in Reigate, Surrey & London

Hand Sketches

Isometric Hand sketch of proposed extensions to detached dwelling house.

- Stage 2 / Concept Design -

The best method to agree a way forward is via a sketch scheme. We take the client brief and propose a number of options that best match this scheme, but also provide alternate 'out-the-box' option that will not have been considered. The sketch scheme will generally include basic layout plans, and perhaps some hand sketches to help convey ideas. Sometimes it may be worth having a 3D model produced in order to assess the volumes proposed and potential impact they may have on neighbouring properties.

This stage is also useful in that these initial sketches can assist in budgeting for your project. They can be utilised in order to obtain a ball-part figure from a builder and this knowledge will help you decide which option is feasible.


Existing photograph VS initial sketch-over idea -

Before/After depiction of existing photo and sketch proposal over photo comparison.
3D visual, volume study of extended areas of semi-detached house.

Volumetric Study -

Layout Proposed Plan drawn up in CAD -

Technical building regulation drawing of GA plan.

Sketch visual + various alternate options via 3D modelling -

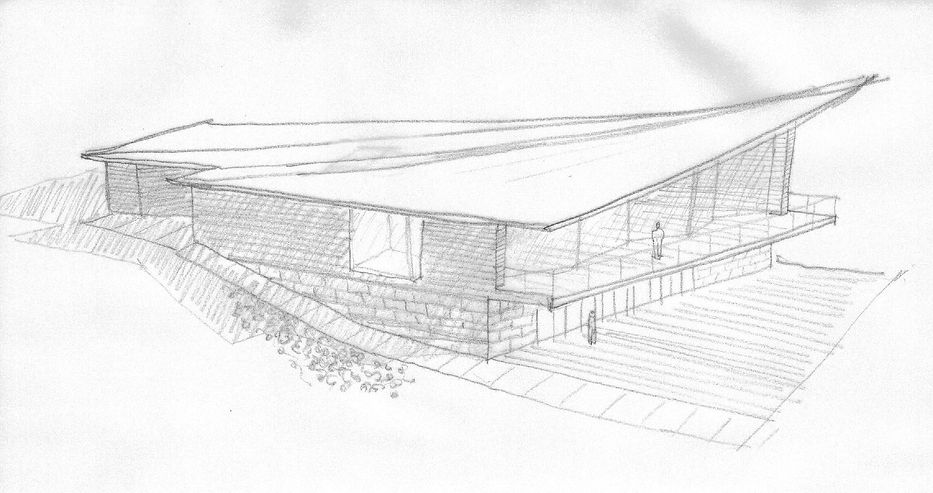

Hand sketch of sailing slub proposal, including wave roof.
Sketchup 3D Proposal of sailing club with side viewing portal.

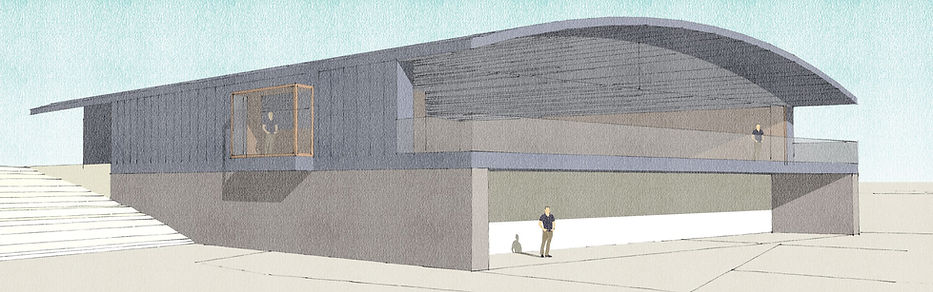

Sketchup 3D proposal of sailing club with barrel vault roof.
3D block study of new build Sailing club proposal.

Let’s Discuss Your Project!


Contact JavensDesign Ltd today for your complimentary online consultation.
